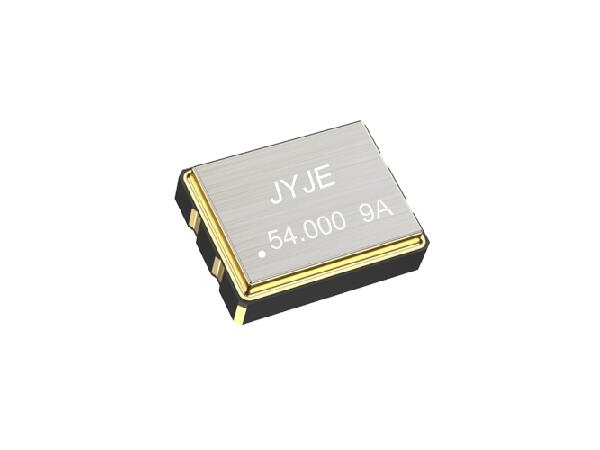

5TO4 OSC5032  Parameters

SYM.

5TO4 OSC5032  Electricial Spec

Min

Typ

Max

Units

1

標稱頻率Nominal Frequency

-

13.700～125.000

MHz

2

溫度頻差Frequency stability

-

±20 ±30

ppm

3

工作溫度Operating Temperature

Topr

-40

25

85

℃

4

電源電壓Supply Voltage

VDD

1.8V  2.8V 3.3V  5V

V

5

輸入電流input Current

lcc

-

-

10

mAS

6

輸出模式Output Type

-

 CMOS

-

7

輸出負載Output Load

CL

  15

pF

8

輸出高電平Output Voltage High

VOH

90%Vdd

-

-

V

9

輸出低電平Output Voltage Low

VOL

-

-

10%Vdd

V

10

占空比Symmetry (Duty ratio)

TH/T

45

～

55

％

11

啟動時間Start-up Time

Tosc

-

-

10

ms

12

上升延Rise Time

Tr

-

-

10

ns

13

下降延Fall Time

Tf

-

-

10

ns
